UNI-T UT61E+ 1000V True RMS Digital Multimeter Auto Range Meter

Description

UNI-T UT61E+ 1000V True RMS Digital Multimeter Auto Range Meter is in Labtex Bangladesh. UT61E+ 1000V True RMS Digital Multimeter UT61+ series are reliable true RMS digital multimeters with display counts of 6000 (UT61B+/D+) and 22,000 (UT61E+). It can measure up to 1000V AC/DC. Equipped with audible and visible alarms, this series can provide warnings, especially when measuring high voltage/current and temperature.

Features of UT61E+ 1000V True RMS Digital Multimeter:

• True RMS
• Data hold/backlight
• Max/Min/Relative mode
• USB communication
• Input protection
• Diode/continuity test
• NCV (audible/visual alarm)
• LPF ACV
• ACV+DCV
• Transistor hFE
• Peak Hold

Specifications

• Safety ratings CAT III 1000V/CAT IV 600V
• AC voltage (V) 1000V ±(0.8%＋10)
• DC voltage (V) 1000V ±(0.05%＋5)
• AC (A) 20A ±(0.8%＋10)
• DC (A) 20A ±(0.5%＋10)
• Resistance (Ω) 220MΩ ±(0.5%＋10)
• Capacitance (F) 220mF ±(3%＋5)
• Frequency (Hz) 220MHz ±(0.01%＋5)
• Duty cycle (%) 0.1%~99.9% ±(2%＋5)
• Display count 　 22000
• Bandwidth (Hz) 　 40~10kHz
• LPF ACV 　 √
• ACV+DCV 　 √
• Transistor hFE 　 √
• Peak Hold 　 √
• Analog bar 　 46
• General Characteristics
• Power 1.5V battery (R03) x 4

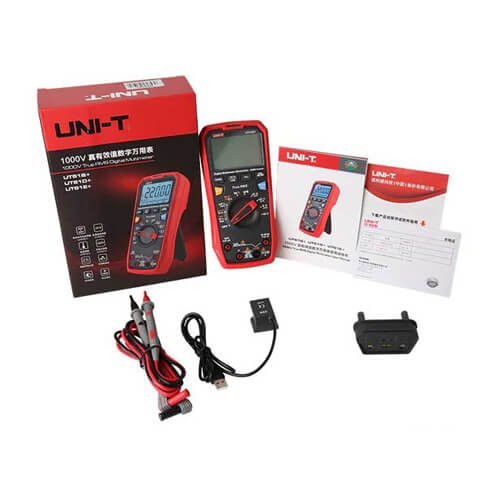

Package Includes

► 1 Pcs UNI-T UT61E+ 1000V True RMS Digital Multimeter
► 1 Pair Test Leads Probe
► 1 Pcs USB cable
► 1 Pcs Temperature Multi-purpose Socket
► 1 Pcs English Manual
